The Latest Eizo ColorEdge Editing Monitor CS2420 Leave a comment

Just arrived at Team Digital: the latest Eizo ColorEdge Editing Monitor CS2420.

We’re just in the process of testing the Eizo CS2420 and early results would suggest that Eizo has a real winner on their hands. At under $1600 it will suit a lot of budgets. Call in to Team Digital’s Eizo Touch Centre and check it out for yourself.

No one knows more about setting up and running Eizo monitors than Team Digital. Remember, when you purchase from Team you also get a remote support package to make sure your Eizo is just perfect.

Simple and Precise Color Management

ColorNavigator 6 Color Management Software

To properly manage color in your work, it is necessary to ensure your monitor maintains consistent settings. The bundled ColorNavigator 6 software allows you to easily carry out calibration. Simply select the desired preset or assign values for brightness, white point, and gamma. ColorNavigator 6 is compatible with a wide range of measurement devices from X-Rite, DataColor, and other manufacturers.

CS2420 target setting window

Vivid Colors Reproduced to Industry Standards

color reproduction areaThe wide color gamut of the ColorEdge CS2420 reproduces almost the entire Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a  way that monitors limited to an sRGB color space cannot display. The wide color gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.

10-bit Simultaneous Display

Using the DisplayPort or HDMI inputs, the ColorEdge CS2420 offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.


*A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports Deep Color is necessary with the HDMI inputs.

Adjusted at the Factory for Smooth Color Gradations

The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 – 255, then using the monitor’s 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

smooth gradation

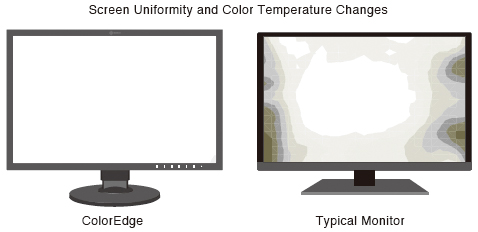

Uniformity from Corner to Corner

Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, the monitor is equipped with EIZO’s patented digital uniformity equalizer (DUE) technology to ensure stable image display and counterbalances the influences that a fluctuating temperature may have on color temperature and brightness for stable image display.


Wide Viewing Angles with IPS Panel

The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.


Sleek, User-Friendly Design

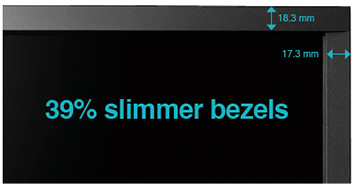

Slimmer Bezels

The slim cabinet features unobtrusive frames that are 39% slimmer than its predecessor’s so you can focus more on the screen.

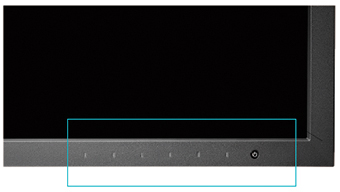

Seamless Electrostatic Switches

The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings.

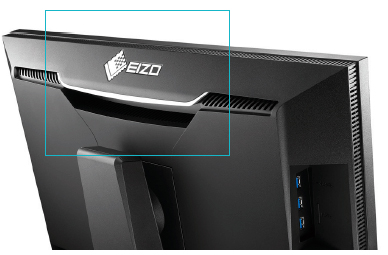

Built-in Carrying Handle

A carrying handle on the back of the monitor allows you to easily move it from one location to another.


Easy-Access USB Ports

The monitor is equipped with three easy-to-access USB 3.0 ports, including one port for battery charging devices such as a smartphone.


Features for Comfort and Ease-of-Use

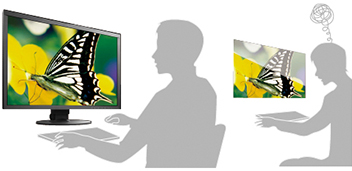

non glareMinimized Reflections with Non-Glare Panel

The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.





ip conversionI/P Conversion for Flicker-Free Display

The HDMI input of the ColorEdge CG2420 supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.



hoodLight-Shielding Hood

The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor’s screen caused by ambient lighting. The ColorEdge CG2420’s shading hood is newly designed and attaches to the monitor magnetically. This allows the users to attach the hood quickly and easily without needing to connect separate parts.

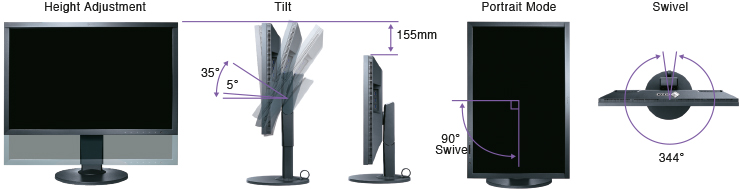

Ergonomic Stand for Comfort and Convenience

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display.

stand

Multiple Inputs

DisplayPort, HDMI, and DVI-D inputs are included and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once so it is not necessary to reconnect the USB cable when using the ColorNavigator software and switching between computers.

connectors

Commitment to Quality

5-Year Manufacturer’s Warranty

5 Year WarrantyColorEdge monitors are backed by a manufacturer’s 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.

*Usage time is limited to 30,000 hours.
